QuickshipProduct Details

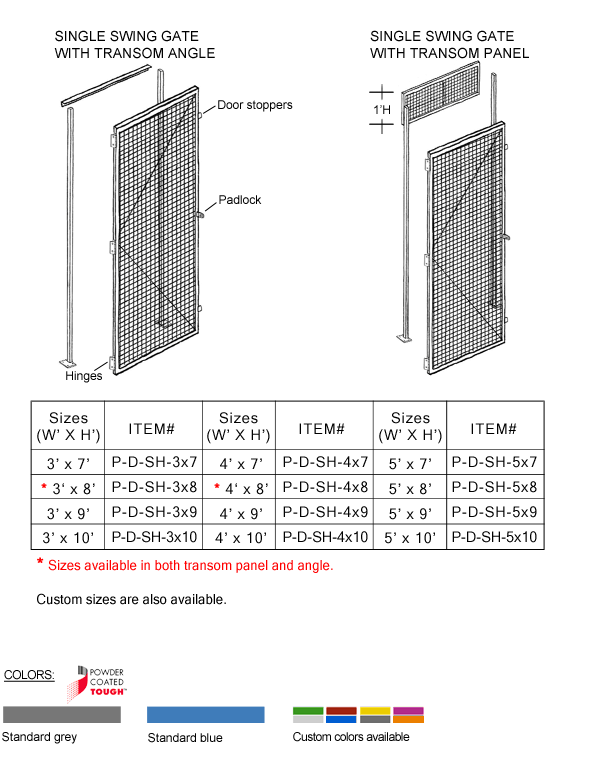

Cogan's single swing gate comes equipped with a padlock hasp and hinges, as well as an optional cylinder lock. It can be installed in 4 different orientations, allowing the gate to open outwards or inwards from left or right. Single swing security gates are available in twelve practical standard sizes from 3'W x 7'H to 5'W x 10'H.
Cogan's double swing gate comes equipped with a padlock hasp, cane bolt, chain bolt and hinges, as well as an optional cylinder lock*. It can be installed in 4 different orientations, allowing it to open outwards or inwards from left or right. Double swing security gates are available in 36 standard dimensions.

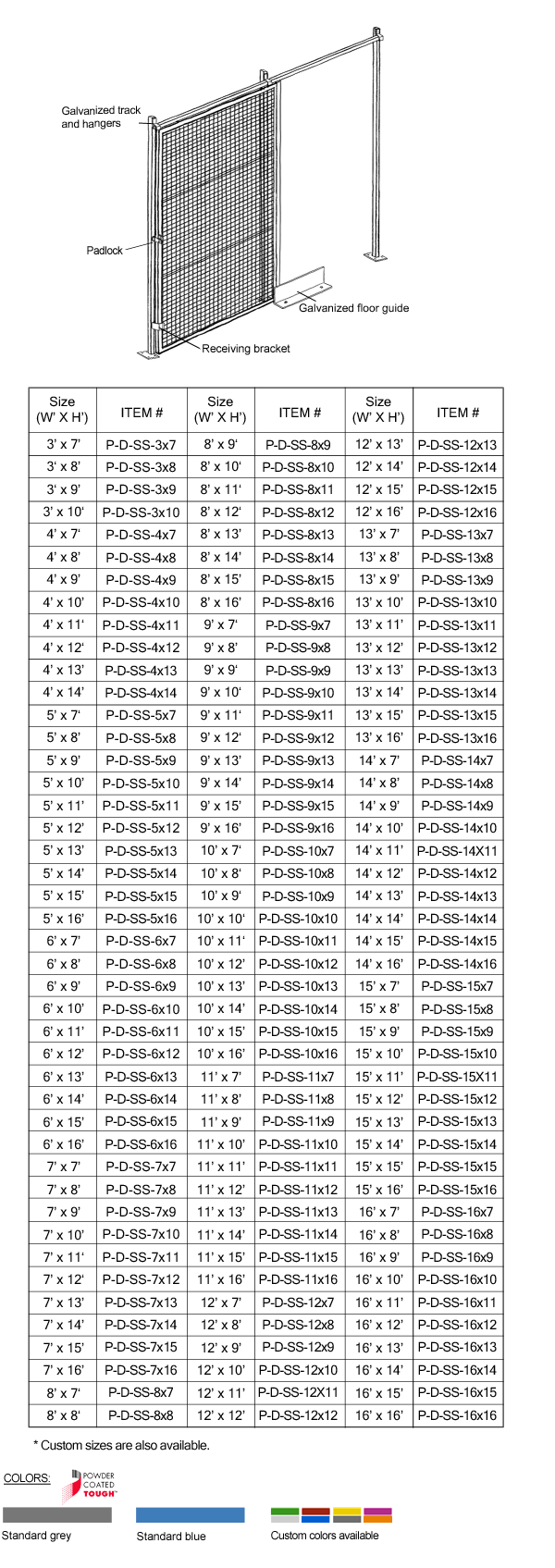

Cogan sliding security gates allow you to have a door opening in very constricted areas. The larger format sliding gates allow greater accessibility for heavy equipment while offering the same space-saving advantages as our narrower models. Available in over 125 practical standard sizes from 3'W x 7'H to 16'W x 16'H, our sliding gates are the ideal solution for oversized storage. Padlock hasp comes standard. Optional cylinder lock also available.

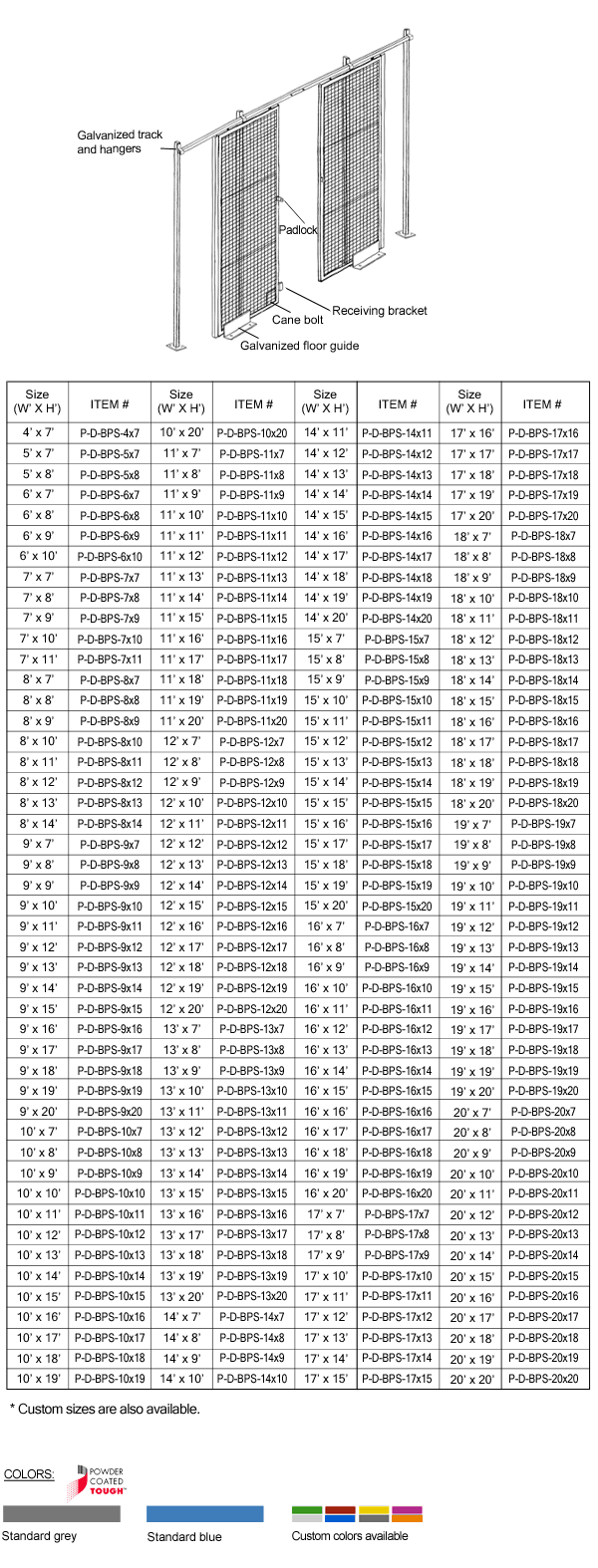

Cogan's bi-parting sliding gate is available in a similar range of convenient sizes as our sliding gate. Equipped with a padlock hasp and cane bolt, our bi-parting sliding gate is your secure storage guarantee.
Below are our standard sliding gate replacement parts. Each can be ordered individually for your convenience.

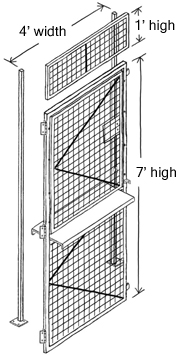

Cogan's Dutch door is designed to act as both a swing door and a service counter. Open the top and bottom portions for full-access or open only the top portion to create a service wicket. Standard doors are available in 4'Wx8'H, which includes a 1'H transom panel, and can be installed in two different orientations. Padlock hasp and hinges as well as a spring latch are included. An optional cylinder lock is also available.

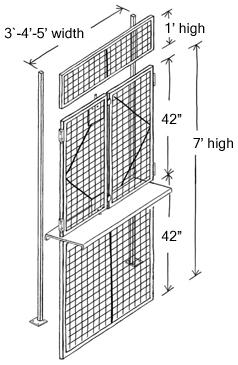

Cogan's service wicket acts as a service counter. The top portion of the door swings open, while the bottom portion remains fixed, restricting free access to the partition. Available in three standard sizes with 1'H transom panels. Padlock hasp and hinges, as well as a spring latch are included. An optional cylinder lock is also available.

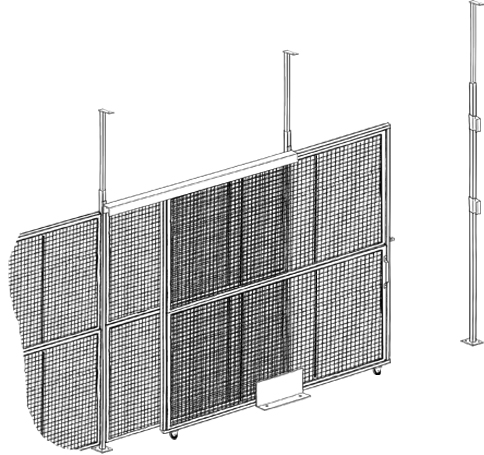

When a wide opening and full height clearance are required for forklift access, nothing works better than a Cogan tunnel door.
Cogan's sliding tunnel door comes equipped with a padlock hasp and heavy-duty 5" soft rolling casters. The top track guide allows for easy slide manoeuverability, while the strong bolted steel handle offers a sturdy grip. An optional cylinder lock is also available upon request. Choose from our 25 standard or order a custom size to fit your exact needs.
Cogan's sliding tunnel door comes equipped with a padlock hasp and heavy-duty 5" soft rolling casters. The top track guide allows for easy slide manoeuverability, while the strong bolted steel handle offers a sturdy grip. An optional cylinder lock is also available upon request. Choose from our 25 standard or order a custom size to fit your exact needs.

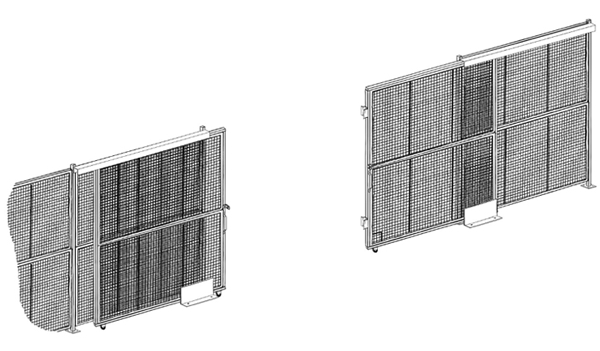

When a wide opening and full height clearance are required for forklift access, nothing works better than a Cogan bi-parting tunnel door.
Cogan's bi-parting tunnel door comes equipped with a padlock hasp, 2 door receivers, a cane bolt and heavy-duty 5" soft rolling casters. The top track guide allows for easy slide manoeuverability, while the strong bolted steel handle offers a sturdy grip. An optional cylinder lock is also available upon request. Choose from our 26 standard sizes are available or order a custom size to fit your exact needs.
Cogan's bi-parting tunnel door comes equipped with a padlock hasp, 2 door receivers, a cane bolt and heavy-duty 5" soft rolling casters. The top track guide allows for easy slide manoeuverability, while the strong bolted steel handle offers a sturdy grip. An optional cylinder lock is also available upon request. Choose from our 26 standard sizes are available or order a custom size to fit your exact needs.
Below are the standard cylinder lock options for all of our partition security gates. Choose between a latch and key, or keys on both sides for added security. Panic bars are also available for swing gates.
Partitions eBrochure
take a LookAre you a Cogan Authorized Dealer?
Download your personalized Green Marketing eBrochure from our website! Simply log in below using your iQuote username and password. If you are an Authorized Dealer, but you don't have a username and password, please don't hesitate to give us a call 800-567-2642 and get started!
Specifications
Please download our partitions specifications document.
Partition Specification document
Download (PDF)
Installation Manuals
Click buttons below to view the installation manuals
* represents the installation manual for the current section.
(DEA) Drug Storage Cages
Partitions Freestanding Up to 24'
Partitions Freestanding
Partitions Freestanding with roof
Bi Parting Sliding Gates *
Bi Parting Tunnel Door *
Double Swing Gates *
Dutch Door *
Service Wicket Gates *
Single Swing Gates *
Single Slide Gates *
Sliding Rack Gates *
Tunnel Door *
Rack Guards
Partitions Spring Hinges Installation Manual
Partitions Panic Bar Installation Manual
Partitions Robotic Machine Guard Installation Manual
Mobile Partitions Installation Manual
